Product Details

The ATMOS ∞  V1.0  R&D Drone Kit is engineered as a professional, versatile research and development platform, specifically tailored for the burgeoning field of Unmanned Aerial Vehicle (UAV) technology. This comprehensive kit provides students, educators, and technology innovators with a robust, hands-on environment for mastering drone systems.

It is not just a kit; it is the launchpad for your next aerial breakthrough.

Feature

• Pixhawk-based Flight Controller for precise navigation and autonomous control
• Supports UART, I2C, and MAVLink protocols for seamless communication
• Sensor Integration: Ultrasonic, LiDAR, GPS, IMU
• Ground Control Software: Supports Mission Planner and Q Ground Control (QGCS)
• Dedicated space for sensors like jetson nano, raspberry pi , Arduino , ESP32
• Max flight time :15 min

Optimized For

• Engineering students & researchers
• UAV development & autonomous system testing
• STEM education & drone-based learning Environments

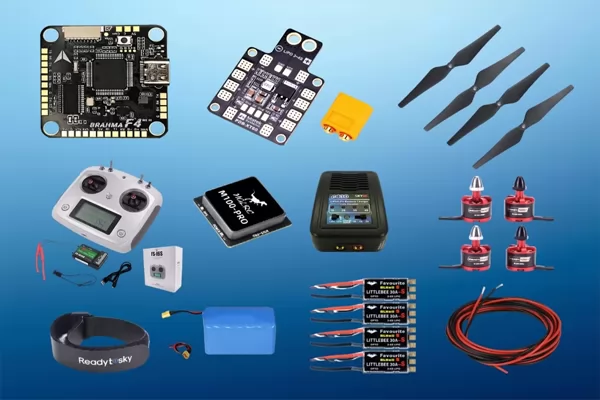

Package Includes

Flight controller × 1

Pixhawk Core. Compact Performance. This cost-effective flight controller delivers uncompromising, research-grade control, optimized for educational and R&D drone platforms.

Technical specification

• Processor: STM32F405 32-bit ARM Cortex M4 core with FPU
• IMU: BMI270 accelerometer/gyroscope
• Barometer: DPS310
• Magnetometer: External required (GPS unit supports this)
• Input Voltage: 3s – 6s
• Communication Interfaces: 4× UART for GPS ,telemetry, receiver. I2C for compass and external sensors
• Receiver: S-BUS signal
• Firmware: Supports inav, ArduPilot
• Weight: ~10g
• Form Factor: Compact and lightweight, ideal for small drones

GPS × 1

• Chip: B101 (10th Generation)
• Channels: 120
• Supported Constellations: GPS (L1), GLONASS (G1), BDS (B1), GALILEO (E1), QZSS (L1), SBAS (L1), IRNSS
• Compass: QMC5883L integrated
• Communication: UART and I2C
• Output Frequency: 10Hz
• LED Indicator: Satellite fix status

Brushless Motors: 920KV 2212 (2 CW + 2 CCW) × 4

• KV Rating: 920KV
• Configuration: 14 Poles / 12 Slots
• Max Current: ~15-18A
• Mounting Hole Distance: 16mm x 19mm
• Propeller Compatibility: 8”– 9” props
• Shaft Diameter: 3.17mm
• Weight: ~52g each

Electronic Speed Controllers: Digital 30A ESC × 4

• Max current: 30 A continuous , 40A burst

WIFI based TELEMETRY module  × 1

Fly sky fsi6s × 1

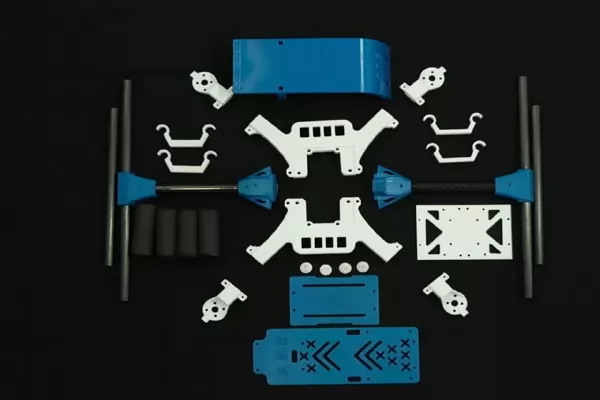

ATMOS ∞ frame only kit × 1

Li-ion battery × 1

• Voltage: 14.8V (4S)
• Capacity: 4500 mAh
• Discharge Rate: 10c
• Connector: XT60

 Balance Charger × 1

• Supports 2S–4s Li-Po & Li-ion batteries
• LED indicators for cell balance and charging completion
• Over-voltage and over-current protection

Propeller Set 9 inch (2CW & 2CCW) × 1
