Product Details

The ATMOS C V1.0 camera kit  provides a seamlessly integrated 4K camera solution designed to elevate your drone's visual capabilities.

This compact and professional kit delivers ultra-high-definition (UHD) 4K video recording and high-resolution stills, offering exceptional clarity and detail for inspection, filming, and academic research. Its integrated design ensures easy installation and compatibility with the ADS platform, making it the ideal upgrade for capturing professional-grade aerial imagery.

Feature

• Pixhawk-based Flight Controller for precise navigation and autonomous control
• Supports UART, I2C, and MAVLink protocols for seamless communication
• 4k video quality camera with 3 axis stabilization and pitch axis control
• Ground Control Software: Supports Mission Planner and QGroundControl (QGCS)
• Max flight time :15 min

Optimized For

• Engineering students & researchers
• UAV development & autonomous system testing
• STEM education & drone-based learning Environments

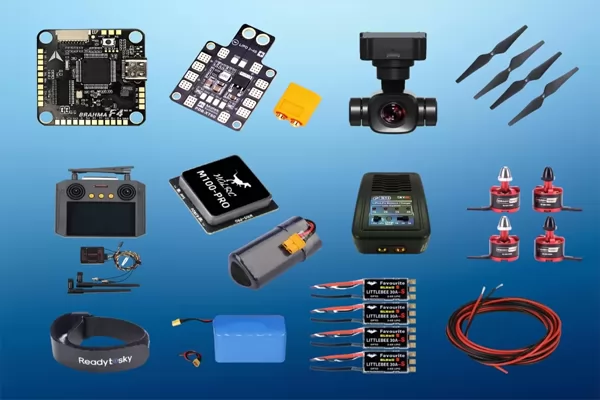

Package Includes

Flight controller × 1

Pixhawk Core. Compact Performance. This cost-effective flight controller delivers uncompromising, research-grade control, optimized for educational and R&D drone platforms.

Technical specification

• Processor: STM32H743 480MHz
• IMU: dual ICM42688 accelerometer/gyroscope
• Barometer: DPS310
• Magnetometer: External required (GPS unit supports this)
• Input Voltage: 3s – 6s
• Communication Interfaces: 7× UART for GPS ,telemetry, receiver. I2C for compass and external sensors
• PWM OUTS – for motors 10, for servo 2, 1 LED
• Receiver: S-BUS signal
• Firmware: Supports inav, ArduPilot,px4
• Weight: ~10g
• Form Factor: Compact and lightweight, ideal for small drones

GPS × 1

• Chip: B101 (10th Generation)
• Channels: 120
• Supported Constellations: GPS (L1), GLONASS (G1), BDS (B1), GALILEO (E1), QZSS (L1), SBAS (L1), IRNSS
• Compass: QMC5883L integrated
• Communication: UART and I2C
• Output Frequency: 10Hz
• LED Indicator: Satellite fix status

Brushless Motors: 920KV 2212 (2 CW + 2 CCW) × 4

• KV Rating: 920KV
• Configuration: 14 Poles / 12 Slots
• Max Current: ~15-18A
• Mounting Hole Distance: 16mm x 19mm
• Propeller Compatibility: 9”–10” props
• Shaft Diameter: 3.17mm
• Weight: ~52g each

Electronic Speed Controllers: Digital 30A ESC × 4

• Max current: 30 A continuous , 40A burst

WIFI based TELEMETRY module  × 1

SIYI A8 mini ×1

• 4k 30 fps
• 3 axis gimbal stabilization

H12 pro × 1

Max range : 5 km

Display : inbuild

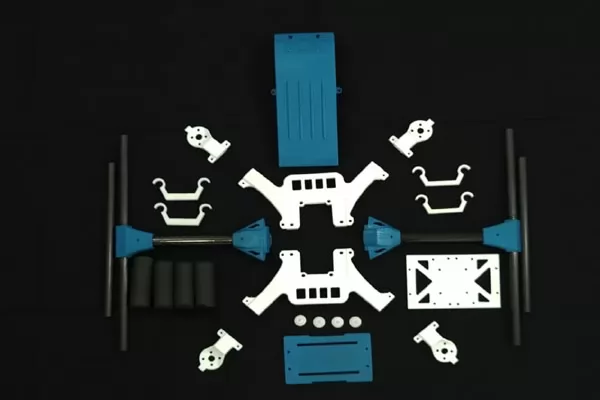

ATMOS C v1.0 frame only kit × 1

Li-ion battery × 1

• Voltage: 14.8V (4S)
• Capacity: 4500 mAh
• Discharge Rate: 10c
• Connector: XT60

 Balance Charger × 1

• Supports 2S–4s Li-Po & Li-ion batteries
• LED indicators for cell balance and charging completion
• Over-voltage and over-current protection

Propeller Set 10 inch (2CW & 2CCW) × 1
