Product Details

The ATMOS X V1.0 DIY Drone Kit is a professional and versatile learning platform engineered for students, educators, and developers seeking hands-on experience in Unmanned Aerial Vehicle (UAV) technology. Ideal for use in academic projects, rapid prototyping, and autonomous system development, this comprehensive kit provides the essential tools and structure to build, program, and explore drone dynamics, thereby accelerating development and enriching educational curricula in a practical, engaging manner.

Feature

• Pixhawk-based Flight Controller for precise navigation and autonomous control
• Supports UART, I2C, and MAVLink protocols for seamless communication
• Sensor Integration: Ultrasonic, LiDAR, GPS, IMU
• Ground Control Software: Supports Mission Planner and QGroundControl (QGCS)
• Max flight time :22  min (4500mah) and 35 min (9000mah battery)

•

  Optimized For

• Engineering students & researchers
• UAV development & autonomous system testing
• STEM education & drone-based learning Environments

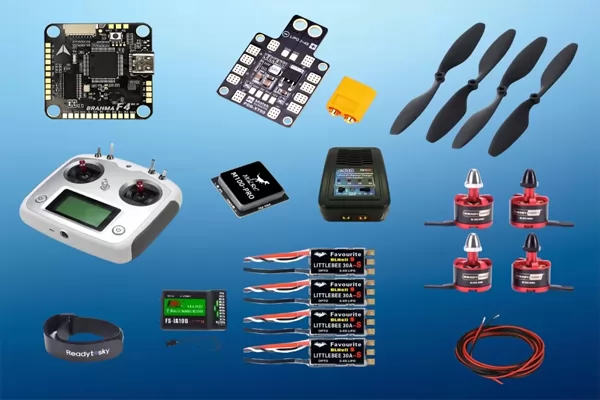

• Package Includes

  Flight controller × 1

  Pixhawk Core. Compact Performance. This cost-effective flight controller delivers uncompromising, research-grade control, optimized for educational and R&D drone platforms.

  Technical specification

• Processor: STM32F405 32-bit ARM Cortex M4 core with FPU
• IMU: BMI270 accelerometer/gyroscope
• Barometer: DPS310
• Magnetometer: External required (GPS unit supports this)
• Input Voltage: 3s – 6s
• Communication Interfaces: 4× UART for GPS ,telemetry, receiver. I2C for compass and external sensors
• Receiver: S-BUS signal
• Firmware: Supports inav, ArduPilot
• Weight: ~10g
• Form Factor: Compact and lightweight, ideal for small drones

•

  GPS × 1

• Chip: B101 (10th Generation)
• Channels: 120
• Supported Constellations: GPS (L1), GLONASS (G1), BDS (B1), GALILEO (E1), QZSS (L1), SBAS (L1), IRNSS
• Compass: QMC5883L integrated
• Communication: UART and I2C
• Output Frequency: 10Hz
• LED Indicator: Satellite fix status

• Brushless Motors: 920KV 2212 (2 CW + 2 CCW) × 4

• KV Rating: 920KV
• Configuration: 14 Poles / 12 Slots
• Max Current: ~15-18A
• Mounting Hole Distance: 16mm x 19mm
• Propeller Compatibility: 9”–10” props
• Shaft Diameter: 3.17mm
• Weight: ~52g each

• Electronic Speed Controllers: Digital 30A ESC × 4

• Max current: 30 A continuous , 40A burst

• WIFI based TELEMETRY module  × 1

  Fly sky fsi6s × 1

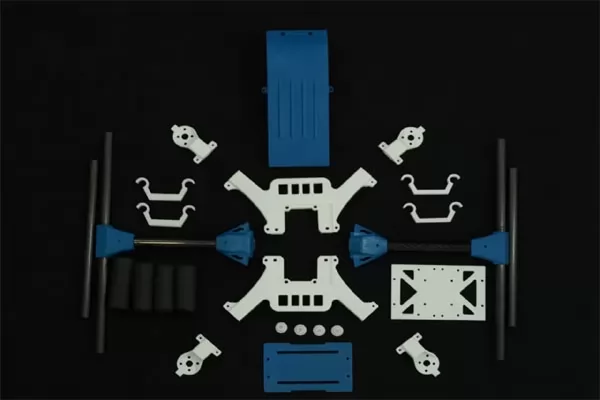

  ATMOS X v1.0 frame only kit × 1

  Li-ion battery × 1

• Voltage: 11.1V (3S)
• Capacity: 4500 mAh
• Discharge Rate: 10c
• Connector: XT60

•  Balance Charger × 1

• Supports 2S–4s Li-Po & Li-ion batteries
• LED indicators for cell balance and charging completion
• Over-voltage and over-current protection
